Product Introduction

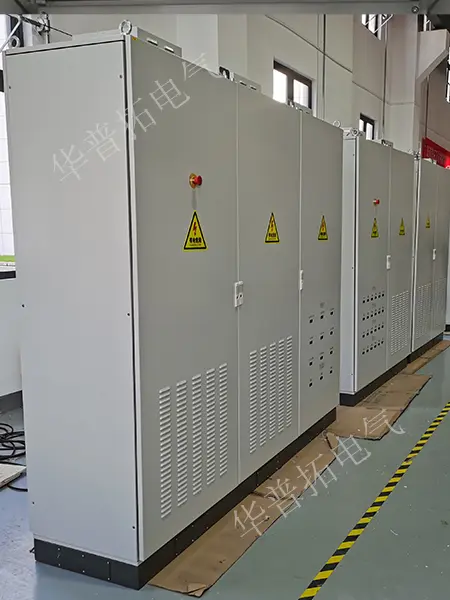

The dimensions of the motor switching cabinet are H2200*W1200*D800mm, with three doors, as shown in the figure. The door panels are marked with warning labels for electrical hazards. Emergency stop buttons and Anderson connectors are installed on the left and right cabinet doors, and the connecting cables are quickly plugged in.

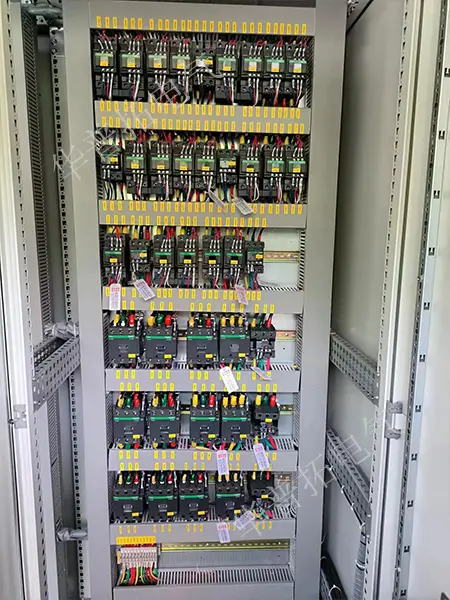

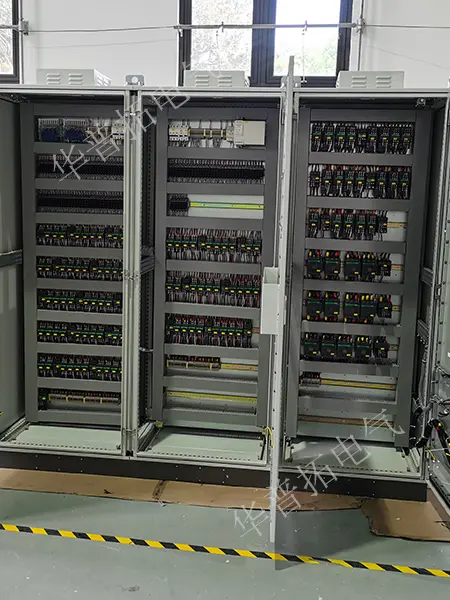

The picture shows the installation site of the main electrical cabinet. 135 Schneider contactors and thermal relays, 27 motor protectors and intermediate relays are installed in the cabinet . The layout of terminals is reasonable. There is also some spare space for later changes and addition of components.
The motor switching cabinet is one of the three-unit cabinets. This project is used by Schneider Wuxi Factory and is divided into two parts: high-power cabinets and low-power cabinets, with a total of 46 cabinets. Responsible for the power distribution control of the new production line of Schneider Wuxi Factory.
Kunshan Huapujie Electric specializes in the production of various electric control boxes, electric control cabinets, PLC control cabinets, inverters, soft start cabinets and other industrial automation control cabinets. It is a manufacturer integrating design, production, assembly and debugging. Non-standard electric control cabinets and programming systems can be customized according to drawings or the needs of the owner.
Company Strength
Innovative design capabilities
Gather more than 10 experienced technical engineers with the ability of power distribution and automatic control design and software programming development;
The two powerful forces joined forces to create Chen Yixin, which uses high intelligence to make the product structure and wiring more scientific, and the wiring inside the cabinet is reasonable and beautiful, showing the beauty of craftsmanship.
Production customization capabilities
With more than 10 years of experience in the production of low-voltage electrical equipment, we can customize exclusive automation control solutions according to customer needs;
We strictly implement the ISO9001 quality management system, all products have passed 3C certification, and the production progress nodes are tracked in time to ensure on-time delivery.
Quality and price guarantee system
Huapujie Electric has long-term cooperation with Siemens, Schneider, ABB, Rockwell and other brand component manufacturers, with genuine and high-quality configuration;
High-quality raw materials are purchased centrally, with lower costs, stable performance, and complete functions, and can be combined according to the actual control scale.
Technical collaboration support
Original technical support, collaborative product upgrade and optimization, establishment of a 7*24-hour rapid response mechanism, and full-time project engineers to guide operations at any time;
The project will be followed up by a dedicated project engineer from the early stage to the later stage to avoid information errors and the time required to familiarize yourself with the project again.
