Product Introduction

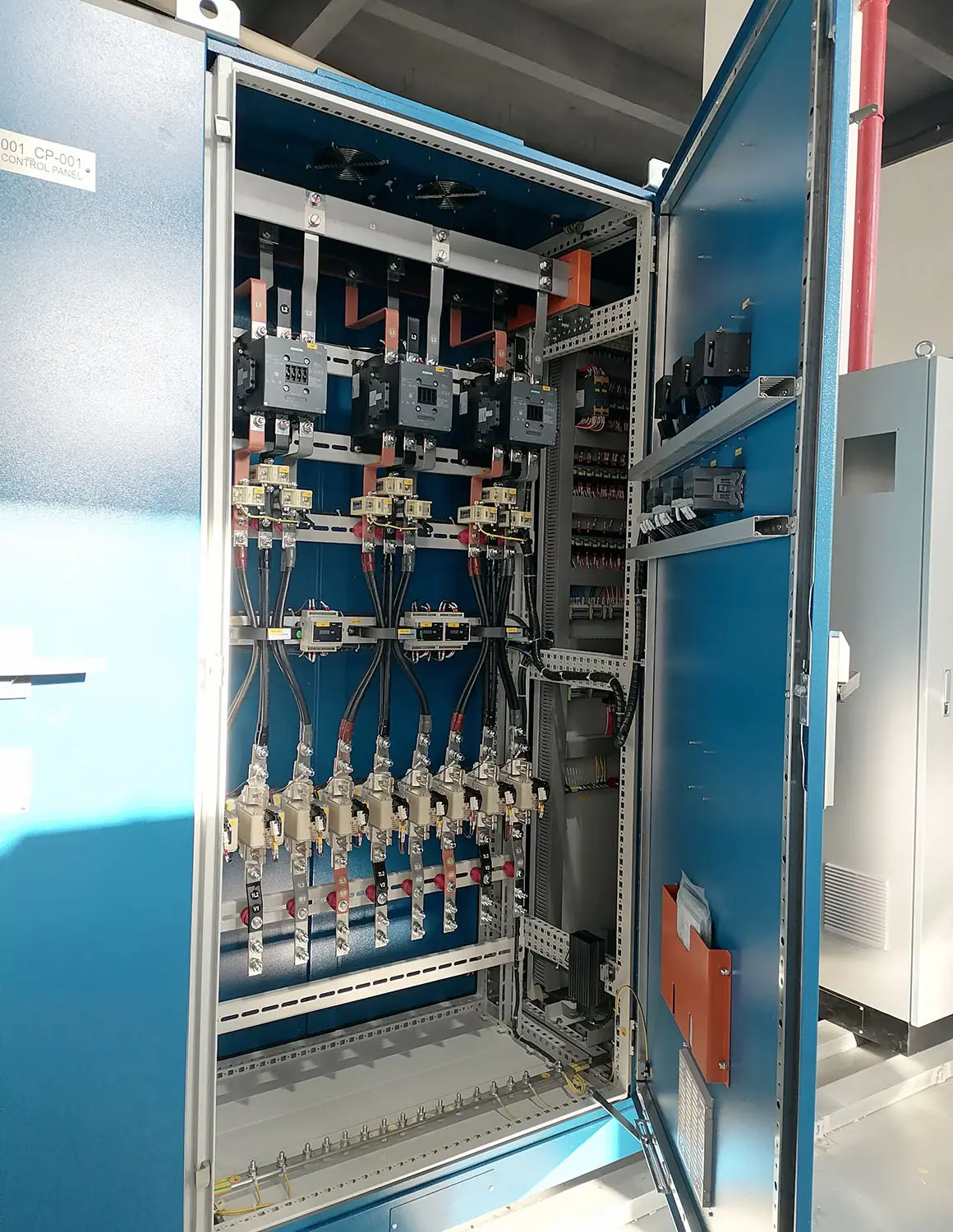

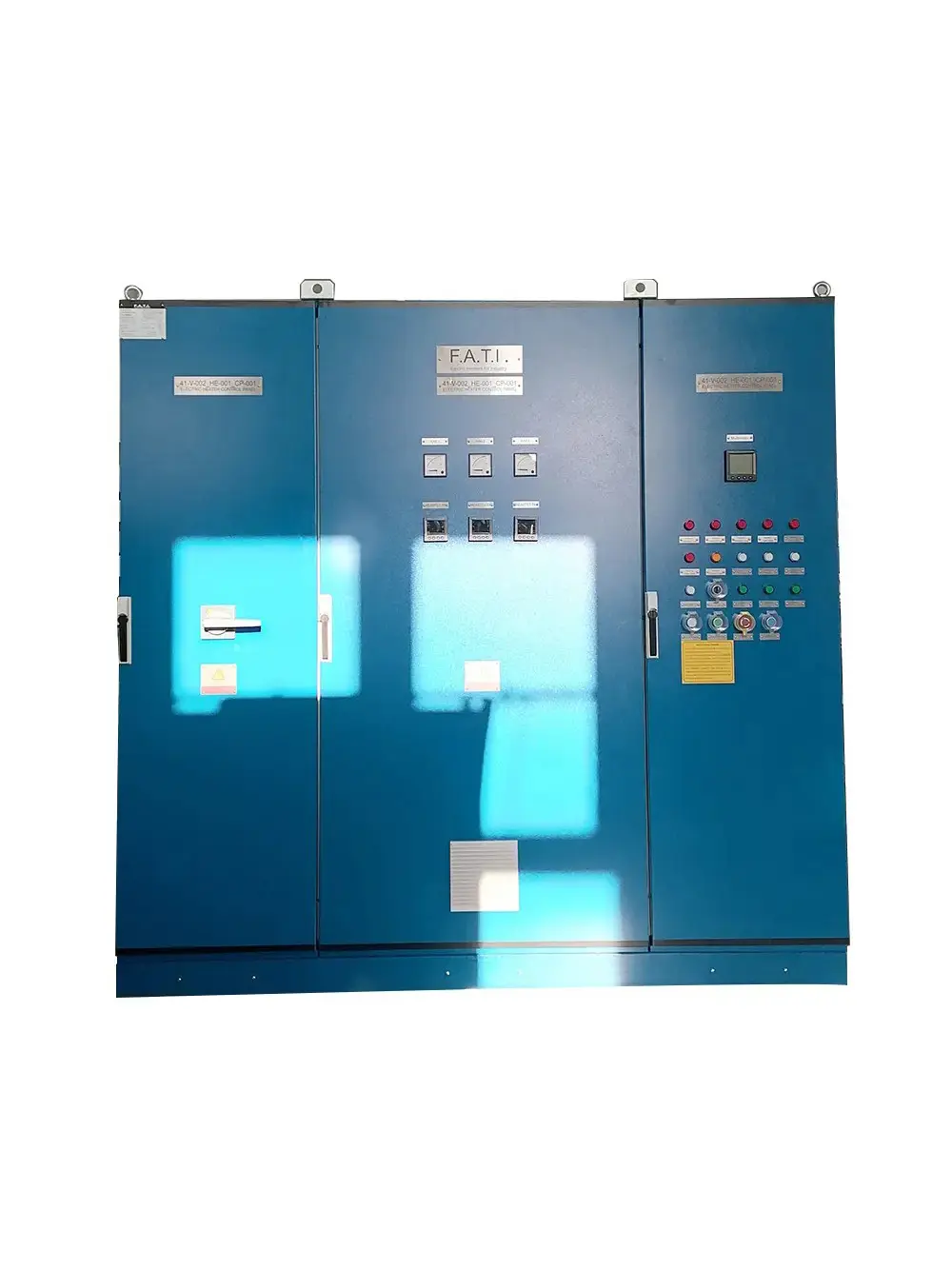

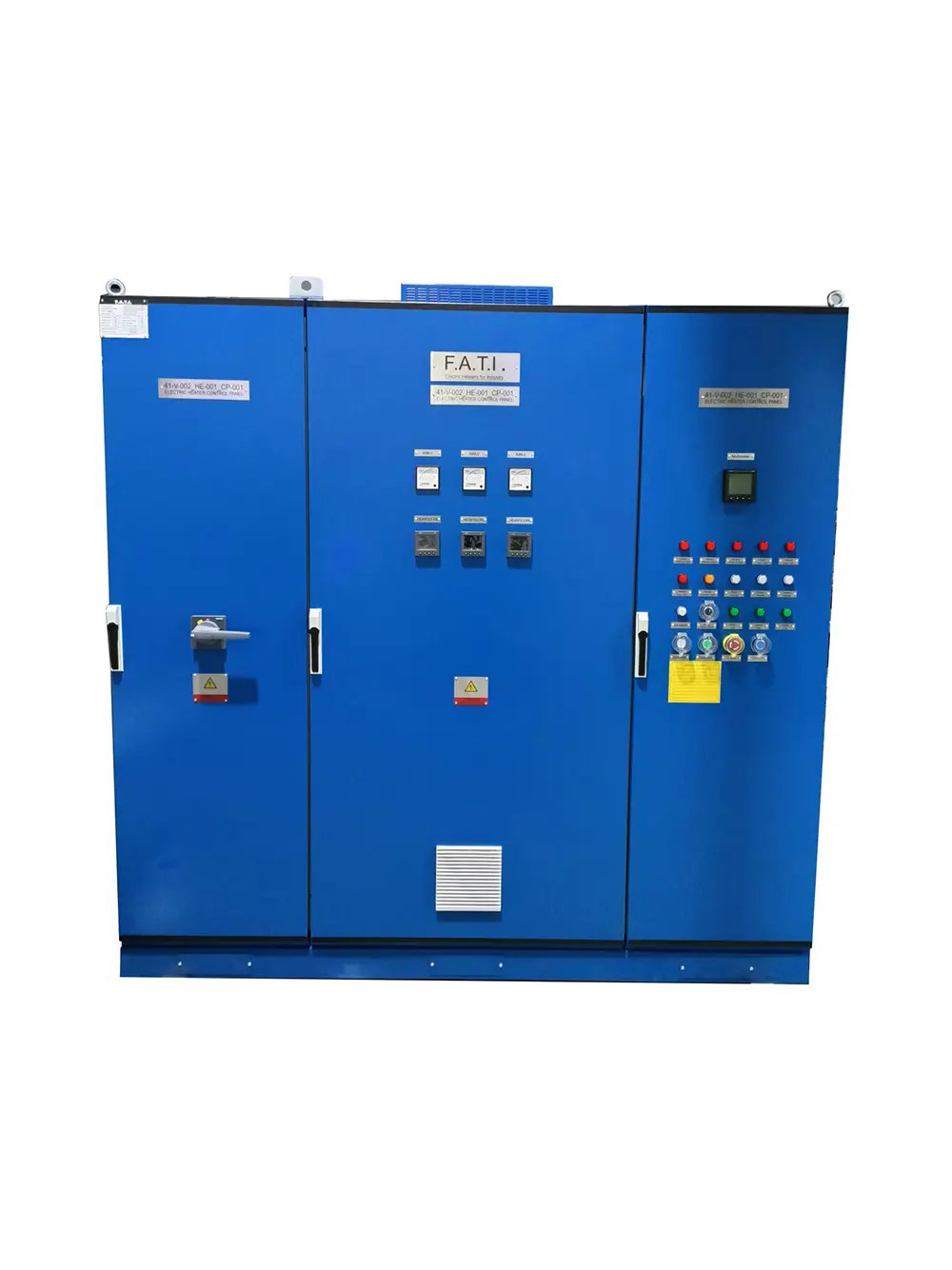

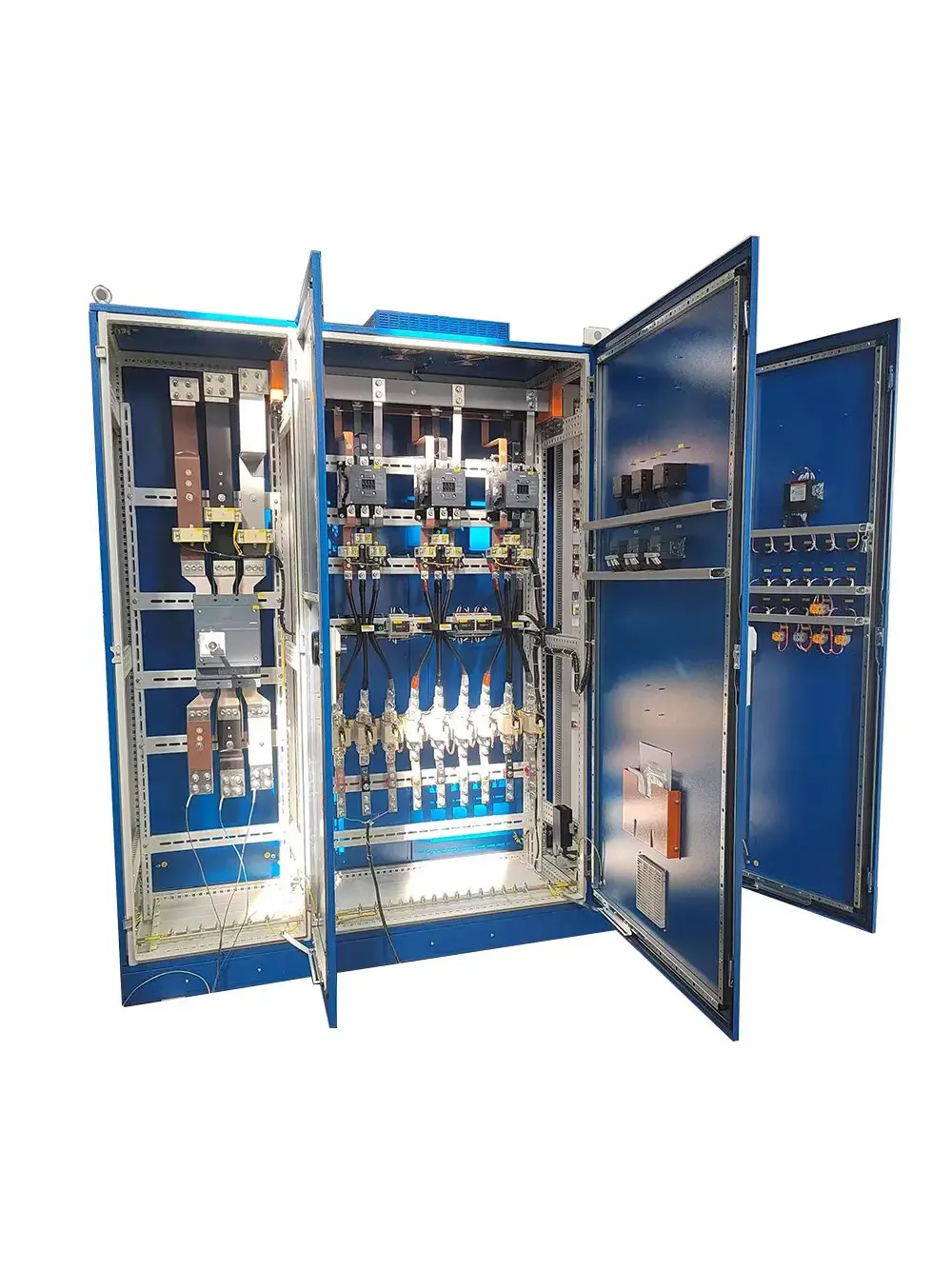

Externally, the design is a triple cabinet, the size is H2100*W2200*D600mm. Connect with channel steel base. In view of the vibration environment of the ship, the components in the control cabinet are firmly installed, and the screws are 8mm international standard. Copper bars are secured with busbar clips. The paint thickness of the control cabinet shell shall meet the requirements of 50um, and the paint shall meet the requirements of the Marine environment.

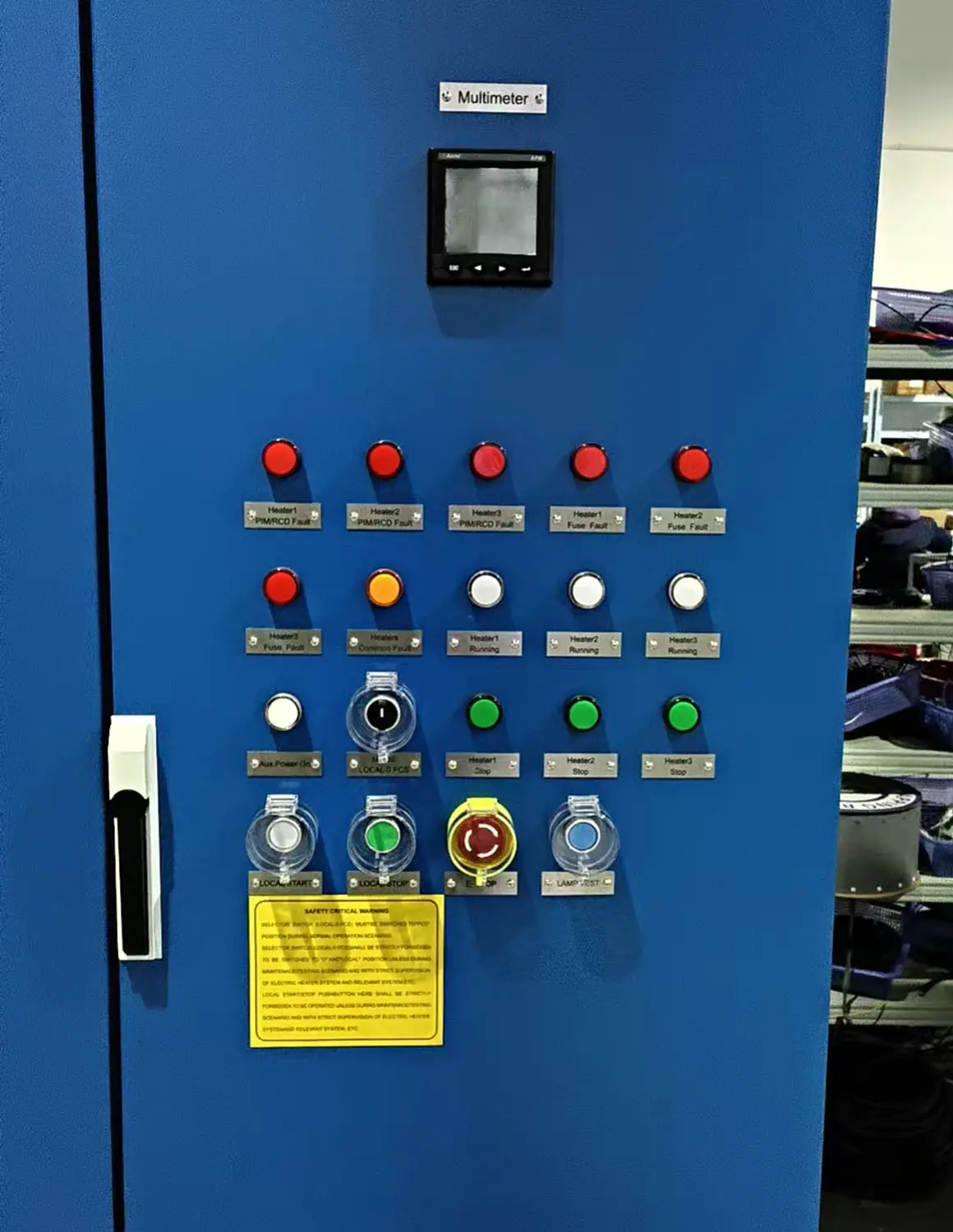

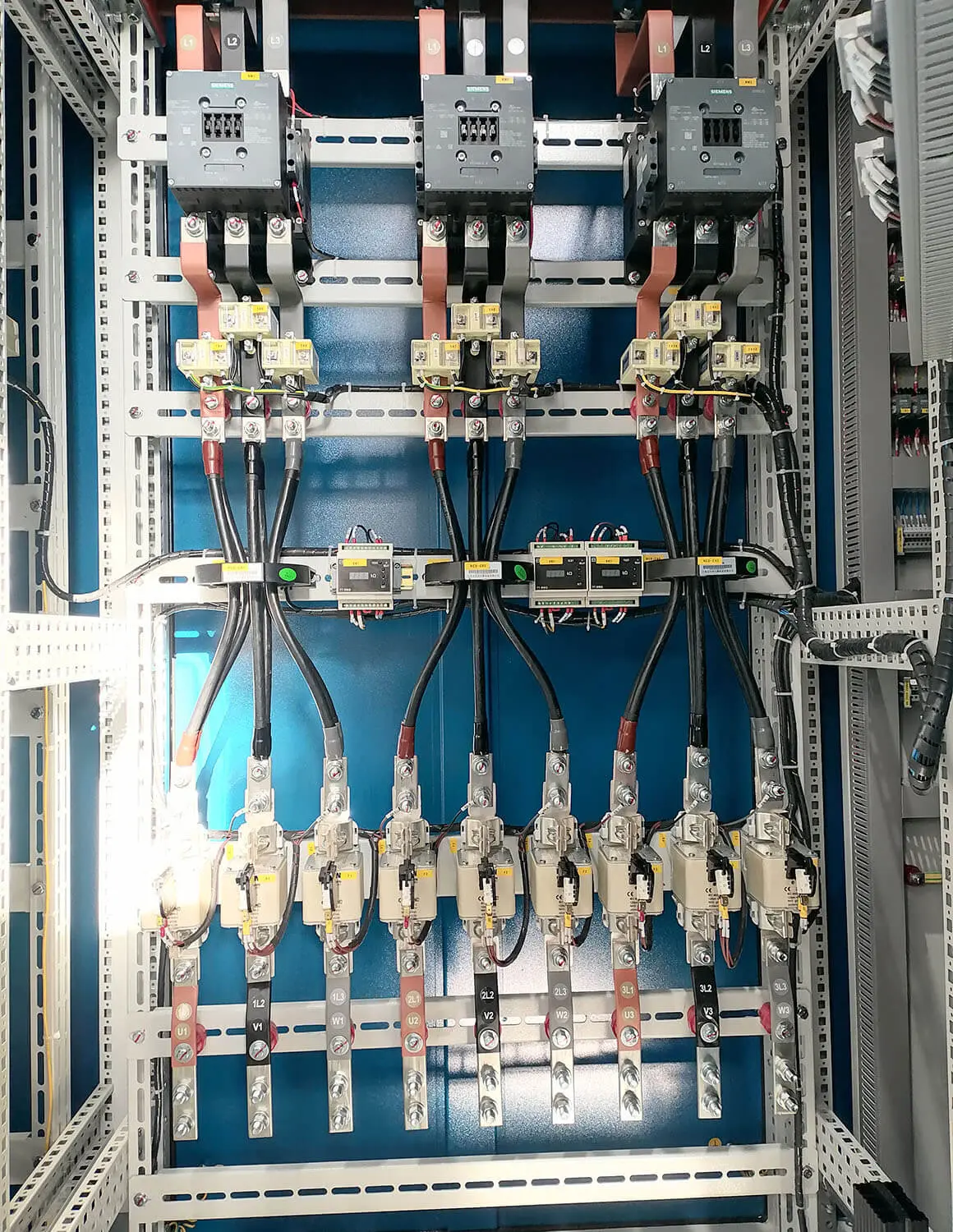

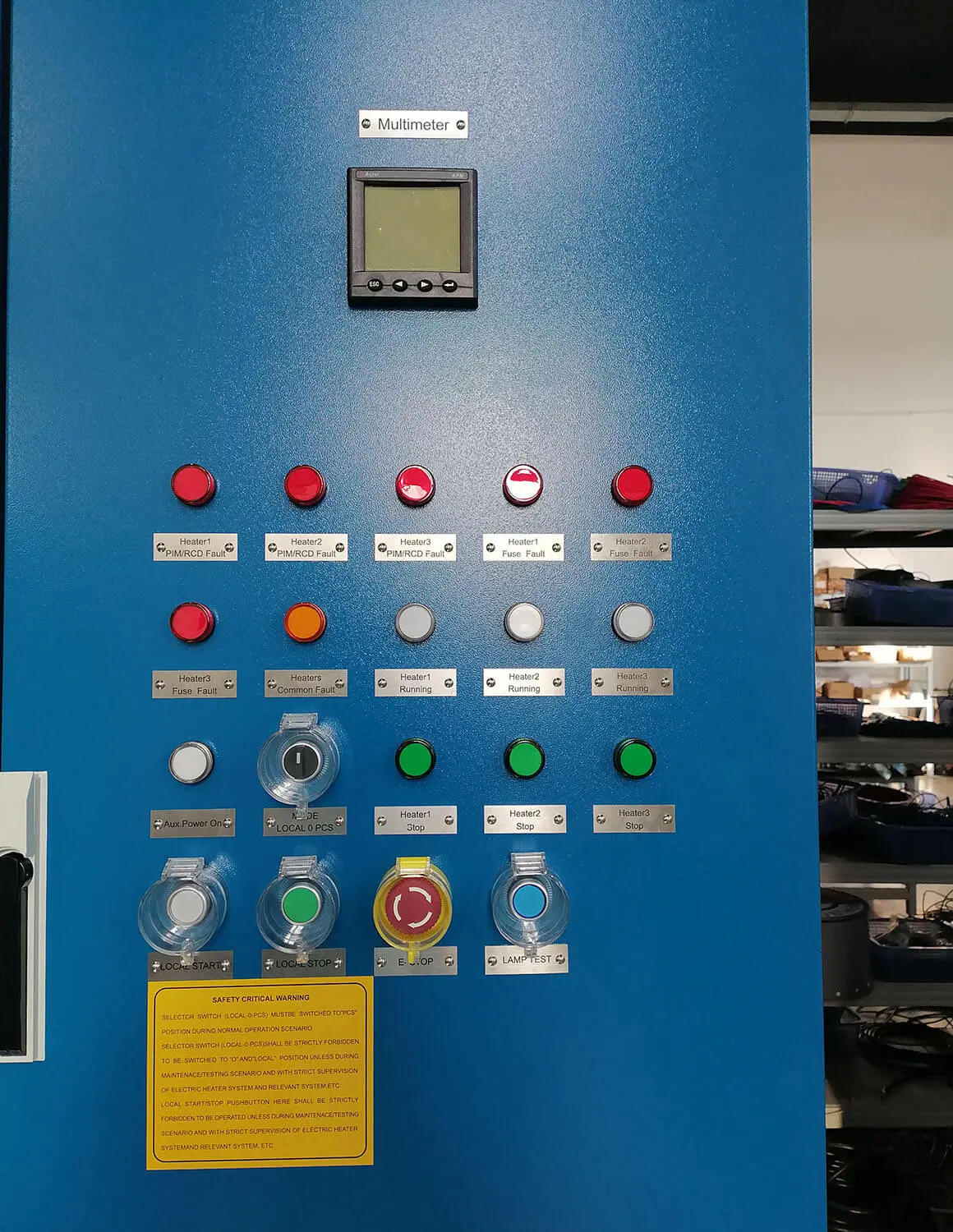

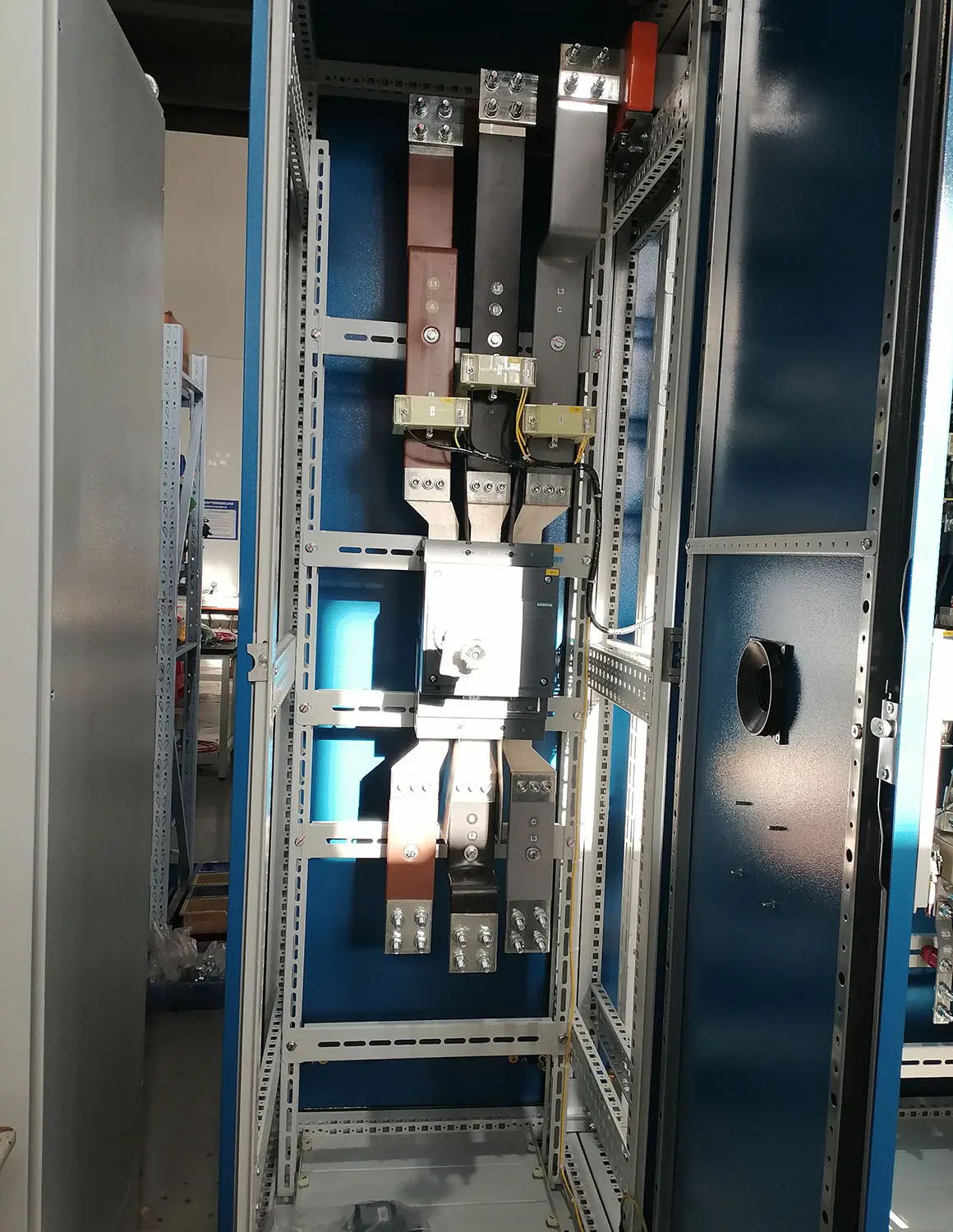

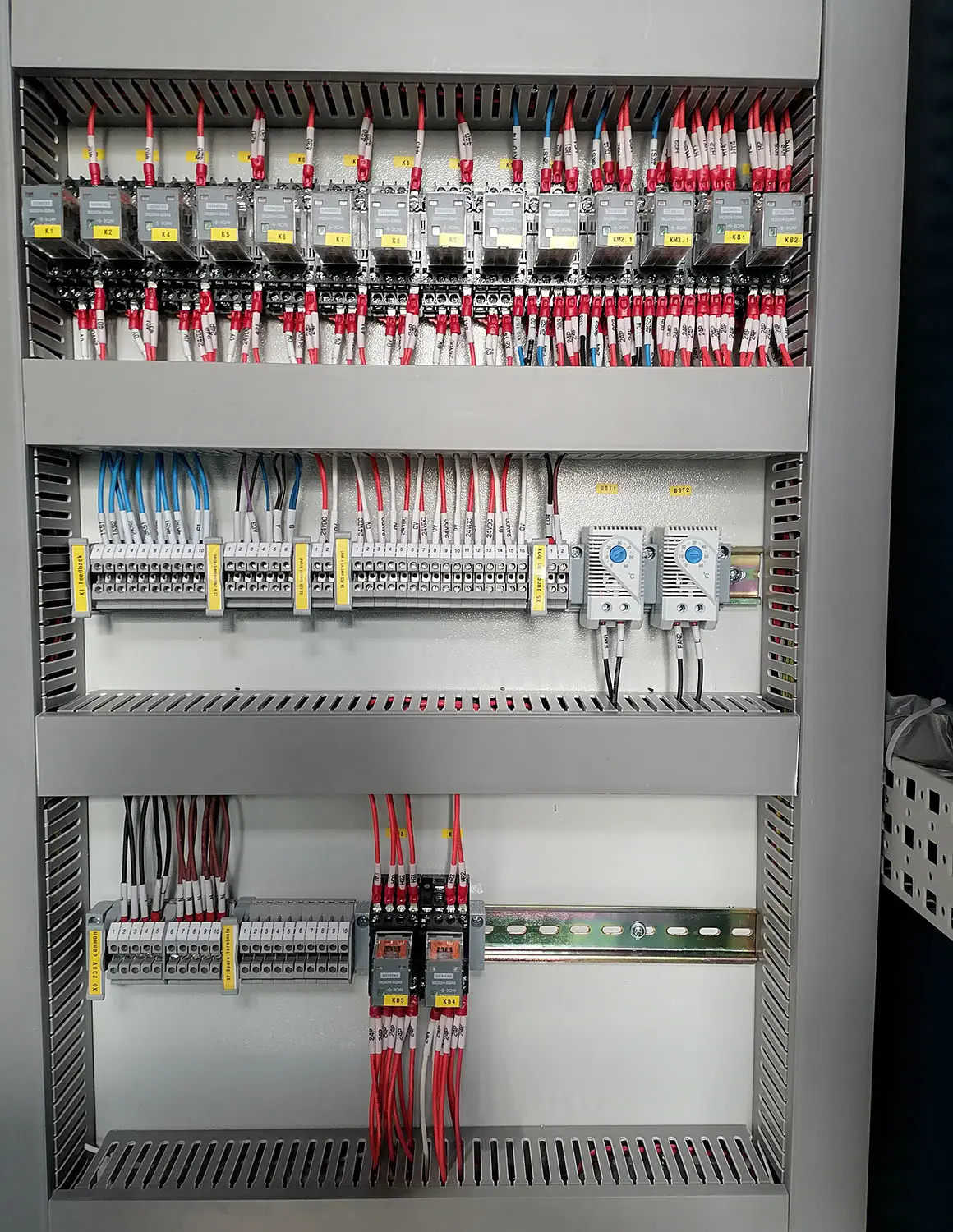

Components of Siemens 1250A circuit breaker, and supporting the cabinet door operation handle, to ensure the operation outside the cabinet, to avoid the danger of electric shock, 400A Siemens AC contactor, 1500VA Marine transformer, It is equipped with Earth Leakage protection grounding device and Safety Relay to ensure the safety of electricity consumption. The lamp test button is installed on the cabinet door to eliminate the damage of the indicator in time. The wires, troughs and other materials used in the cabinet are flame retardant materials.
Specifications
● Electric voltage: 400V
● Uses: electric heating control
● Working principle: The power of the electric heater is adjusted by the opening and closing of the AC contactor to change the heat, so as to control the temperature of the electric heater and exploit oil and gas.
● Working environment: Marine ship
● Packing: Packed in wooden cases
● Export country: Italy
● Certification: Through the American Bureau of Shipping certification, ABS certificate
Company Strength
Innovative design capabilities
Gather more than 10 experienced technical engineers with the ability of power distribution and automatic control design and software programming development;
The two powerful forces joined forces to create Chen Yixin, which uses high intelligence to make the product structure and wiring more scientific, and the wiring inside the cabinet is reasonable and beautiful, showing the beauty of craftsmanship.
Production customization capabilities
With more than 10 years of experience in the production of low-voltage electrical equipment, we can customize exclusive automation control solutions according to customer needs;
We strictly implement the ISO9001 quality management system, all products have passed 3C certification, and the production progress nodes are tracked in time to ensure on-time delivery.
Quality and price guarantee system
Huapujie Electric has long-term cooperation with Siemens, Schneider, ABB, Rockwell and other brand component manufacturers, with genuine and high-quality configuration;
High-quality raw materials are purchased centrally, with lower costs, stable performance, and complete functions, and can be combined according to the actual control scale.
Technical collaboration support
Original technical support, collaborative product upgrade and optimization, establishment of a 7*24-hour rapid response mechanism, and full-time project engineers to guide operations at any time;
The project will be followed up by a dedicated project engineer from the early stage to the later stage to avoid information errors and the time required to familiarize yourself with the project again.
