Qingdao Academician Port Hydrogen Refueling Station Equipment Compressor Starting Cabinet System

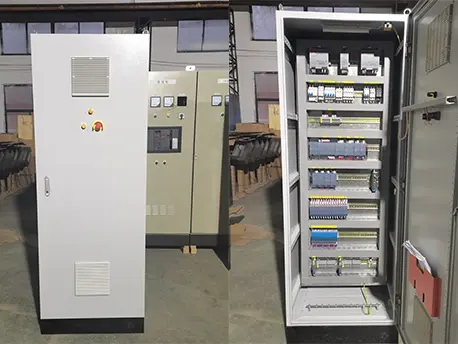

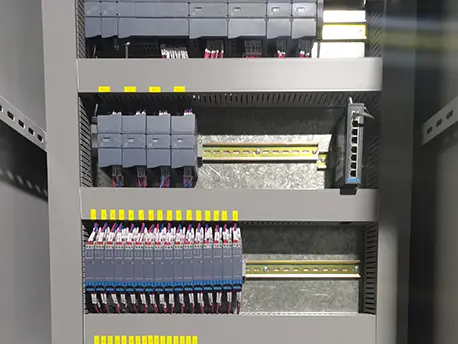

Kunshan Huapujie Electric is a manufacturer of compressor starting cabinet system for Qingdao Academician Port hydrogen refueling station equipment. Our company undertook the production of the PLC main control cabinet, compressor starting cabinet, and two low-voltage distribution cabinets for this project. Collect signals through PLC modules, and control the operation of hydrogen refueling station equipment through soft start and stop. The above picture is a real-life photo of the PLC main control cabinet, including the installation and layout of the internal PLC modules and various components.

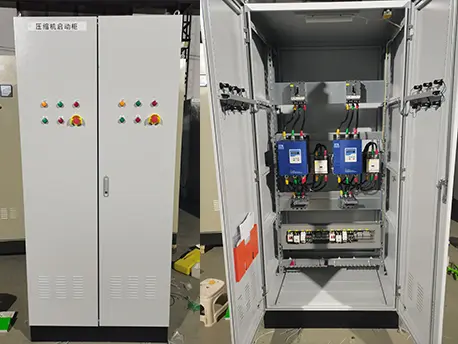

The compressor starter cabinet consists of two sets of soft start devices installed in the same control cabinet. Therefore, the control cabinet is designed with a double door shape, with one side open and the other side unaffected. Half door opening and closing space requirements are not high, suitable for environments with narrow on-site spaces.

The soft start brand is the domestically produced Xipu STR series, with two sets of soft starts, one for use and one for backup, which do not interfere with each other.

● Two sets of low-voltage distribution cabinets are combined to save space and facilitate use.

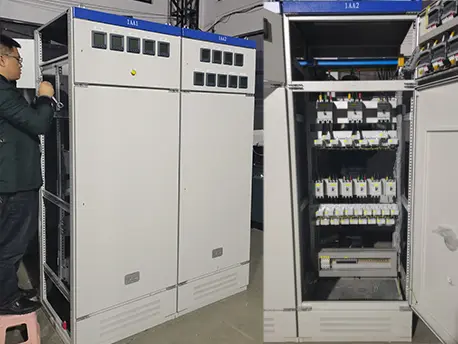

● The distribution cabinet is a GGD type control cabinet, with instruments installed on the door and opened and closed separately.

● The layout of components inside the cabinet is compact, aesthetically pleasing, and utilizes space reasonably.

● PLC program module, automation control.

● Switches and isolators achieve communication conversion and signal isolation.

● The entire control system is easy to operate, with soft start to reduce energy consumption and save costs.
