Huapujie Electric adds bricks and tiles to serve the Winter Olympics at Yanqing UAV Base

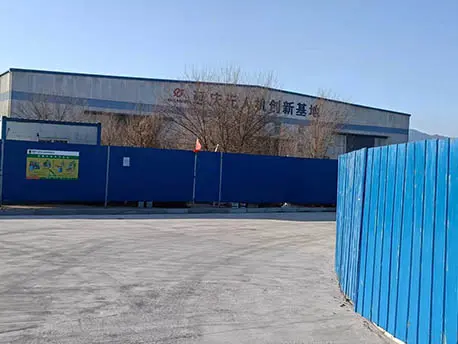

With the approach of the Beijing Winter Olympics, the preparation work for various service guarantees is in the sprint stage. The application of drones in the Winter Olympics is also one of the service guarantee tasks. The drone innovation base located in Yanqing, Beijing is based in Beijing to serve the 2022 Winter Olympics. The water treatment in the early stage of hydrogen production in the basic construction of the base is designed and produced by Huapu Tuo Electric with an electrical control cabinet. Carry out the decomposition and treatment of water quality in the early stage of hydrogen production. Huapu Tuo Electric contributes to serving the Winter Olympics at Yanqing UAV Base.

Due to electrolytic hydrogen production involving explosive gases, the main electrical control cabinet is designed as explosion-proof. The cabinet size is W800 * D500 * H2000. Explosion proof rating: explosion-proof type IIC T4 positive pressure explosion-proof. The remaining two are conventional electrical cabinets, with Siemens S7-1200 series CPUs and Siemens 7-inch explosion-proof screens. Schneider ATV610 series 30KW frequency converter is selected as the frequency converter. The system can collect temperature signals and hydrogen concentration signals. The temperature and hydrogen signals are interlocked with the warm air fan and exhaust fan to control the operation of the exhaust fan and warm air fan based on temperature. If the hydrogen concentration is too high, the exhaust fan will be turned on.

● Siemens 1200 series PLC program module. Internationally renowned brand, high efficiency and stability.

● Schneider ATV60 series 30KW frequency converter can provide stable flow rate, quickly and stably electrolyze hydrogen, and improve efficiency.

● Non standard customization of electrical control cabinets, explosion-proof cabinet design meets the actual environmental usage needs of users. Flexible control.

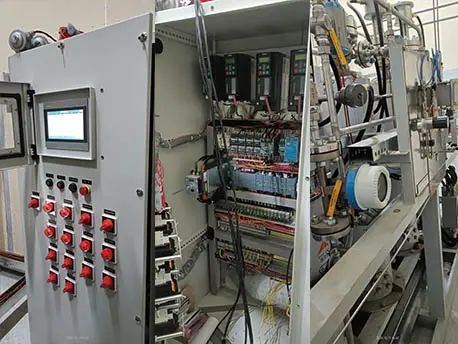

● As shown in the left figure, the touch screen of the explosion-proof electrical cabinet is equipped with a protective cover for greater safety. Through the touchscreen display, users can intuitively observe the status of water treatment and the working condition of electrolytic hydrogen. Make predictions for on-site equipment systems.

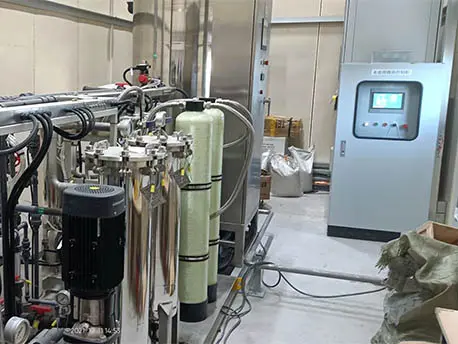

● It can provide a global overview of the entire water treatment electrolytic hydrogen system and switch to different states in different screens to monitor temperature and hydrogen concentration. When the hydrogen concentration is too high, the exhaust fan will automatically turn on, ensuring safety and reliability.

● Intelligent control equipment operation. Improve efficiency and reduce losses!
