Product Introduction

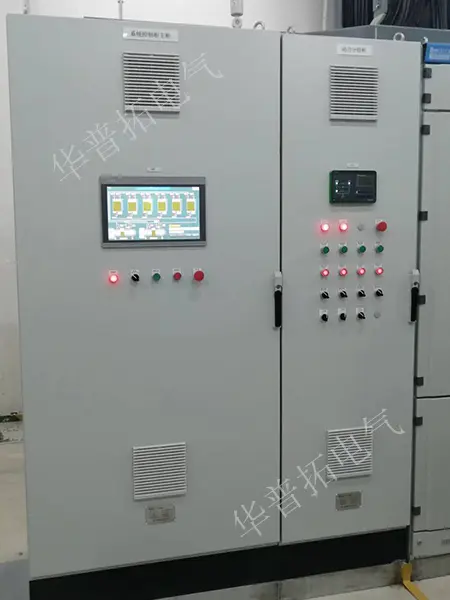

This diesel generator automatic control cabinet is used for the start, stop and control of oil production machine generator sets, and is the brain of diesel generator sets. The PLC main control cabinet adopts the Rittal structure. The components use Siemens 1500 series editable program module PLC controller. Through the Kunlun Tongtai touch screen screen output, the system can set parameters as needed, and is also equipped with a Siemens switch and a manned serial port server .
The components used in this control cabinet are all first-line brands: Siemens, Schneider, Omron, etc. .PLC automatic control cabinet has multiple protections such as short circuit, overcurrent, overvoltage, overheating, overload, emergency power off, etc. It is safe and reliable. It is widely used in constant pressure water supply, air compressor, fan pump, central air conditioning, port machinery, machine tools, boilers, papermaking machinery, food machinery and many other fields.

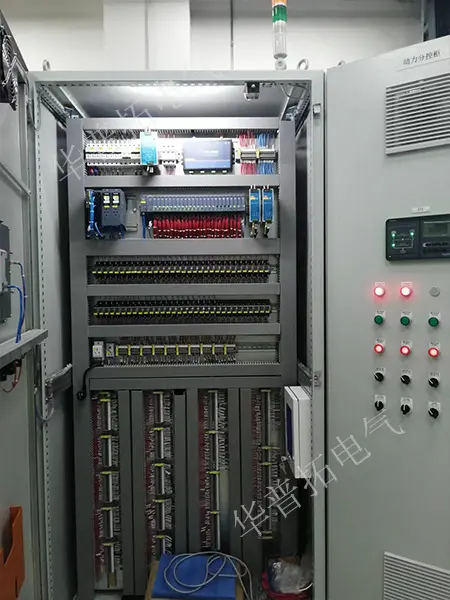

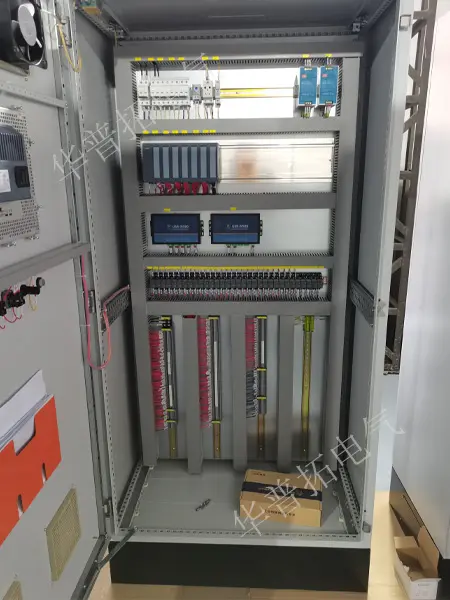

As shown in the left figure, the electric control cabinet of the diesel generator set is equipped with Schneider circuit breakers, fuses, Mean Well 24V DC power supply, Siemens 1500 series PLC modules, human serial port servers, intermediate relays and wiring terminals, etc. It can be programmed with the Kunlun Tongtai HMI on the cabinet door to complete the automatic communication .
Power supply for diesel generator control cabinet: DC 24V, single-phase AC 220v, (-10%, +15%), 50HZ Protection level: IP41 or IP20
Environmental conditions: Ambient temperature is 0℃-55℃, avoid direct sunlight; relative humidity of air should be less than 85% (no condensation). Keep away from strong vibration sources, avoid frequent or continuous vibration with a vibration frequency of 10-55HZ. Avoid corrosive and flammable gases.
Company Strength
Innovative design capabilities
Gather more than 10 experienced technical engineers with the ability of power distribution and automatic control design and software programming development;
The two powerful forces joined forces to create Chen Yixin, which uses high intelligence to make the product structure and wiring more scientific, and the wiring inside the cabinet is reasonable and beautiful, showing the beauty of craftsmanship.
Production customization capabilities
With more than 10 years of experience in the production of low-voltage electrical equipment, we can customize exclusive automation control solutions according to customer needs;
We strictly implement the ISO9001 quality management system, all products have passed 3C certification, and the production progress nodes are tracked in time to ensure on-time delivery.
Quality and price guarantee system
Huapujie Electric has long-term cooperation with Siemens, Schneider, ABB, Rockwell and other brand component manufacturers, with genuine and high-quality configuration;
High-quality raw materials are purchased centrally, with lower costs, stable performance, and complete functions, and can be combined according to the actual control scale.
Technical collaboration support
Original technical support, collaborative product upgrade and optimization, establishment of a 7*24-hour rapid response mechanism, and full-time project engineers to guide operations at any time;
The project will be followed up by a dedicated project engineer from the early stage to the later stage to avoid information errors and the time required to familiarize yourself with the project again.
